Standard features

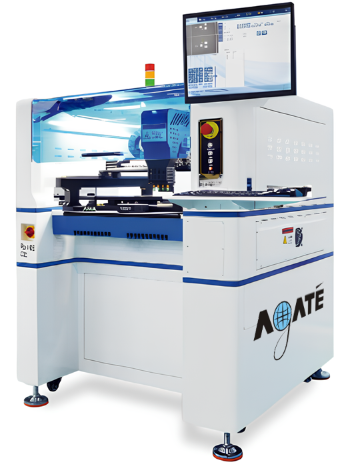

• Average Mounting Speed: 7500-11000 CPH [Average 8000 CPH]
• Independent Z-axis for each head for simultaneous picking + high speed flying camera
• TBI high-precision grinding ball-screw + TBI high-load linear guideway + Japanese Servo Motor

Component Library Function

• Components: 0201, 0402, 0603, 0805, 1206, LED Lamp Beads, Diodes, Transistors, SOT, within 45mm x 45mm, pin pitch>0.4mm, QFP, BGA, etc.
• Mounting Heads: 4
• Feeders: 52
• Accuracy: 0.01mm
• XY Movement Range: 600x519mm
• Maximum Z axis Range: 38mm
• Maximum PCB Size: 475x370mm
• Component Height: 0-13mm
• Programming: Point-to-point, visual programming, PCB File Co-ordinates inputting. Supports offline programming to improve programming efficiency

Made in Italy

Standard Features

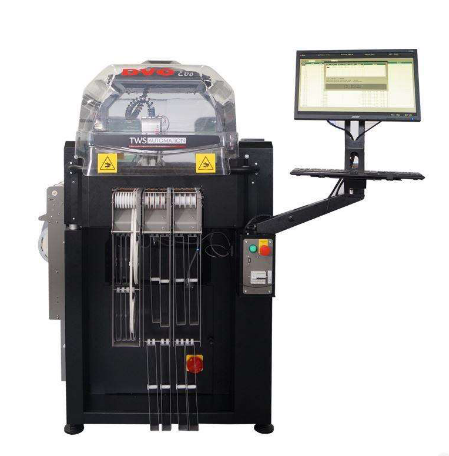

• Over 1,300 installation worldwide
• 0201 Components Capability
• Vibration-free high-speed brushless motors
• High-resolution full colour camera
• Automatic feeder Z seƫng
• Max CPH: 4400
• Component Sizes: from 0201 to 40x40mm - 13.5 mm max height - pitch 0,5mm
• Placement Area: 440*360mm
• Maximum Feeders – 120

Standard Features

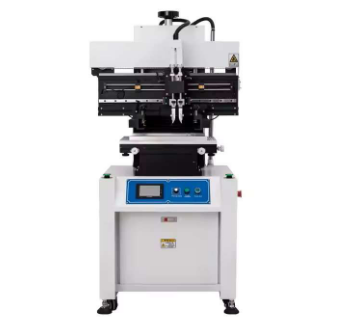

• Printing Area – 480 x 420mm
• Max PCB Thickness – 6mm
• Two independent squeegees, self-levelling with controlled pressure, electro-actuated
• Touch-screen display
• Low-maintenance, industry-proven printer

Standard Features

• Max PCB Size: 400x320mm
• Stencil Frame Size:-
• Min 370x270mm
• Max 600x320mm
• Squeegee Length: Standard 200mm. customisable
• PCB Thickness: 0.2mm-2.0mm
• Repeatability: 0.02mm
• Printing Modes: Single, double
• Cast Iron table for minimising jiƩer
• Positioning: PCB outer pin positioning

Standard features

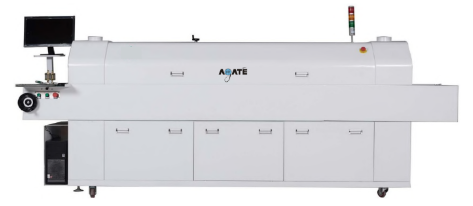

• 8 up, 8 bottom heating zones + 2 air cooling zones
• Conveyor Speed: 0-2000mm/min
• Three-four stage cooling to satisfy lead-free norms
• Smooth cooling curve
• Independent flux collection system in zone 4-8
• Temperature module self-tuning, cold junction automatic compensation with ±1 °C accuracy

Standard features

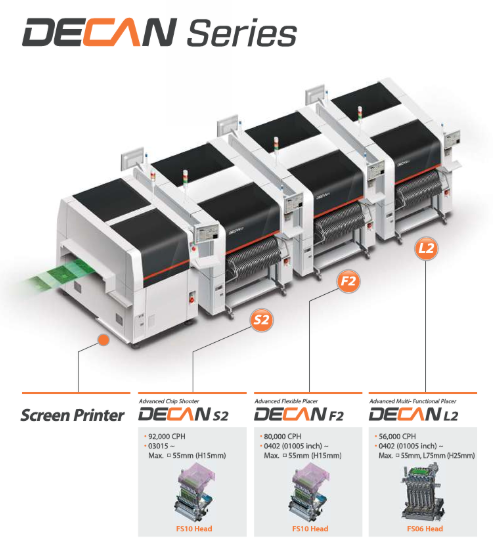

• Industry-leading Hanwha Precision Machinery SMT Pick and Place Machines
• Up to 92000 Optimum CPH
• Maximum 10 spindle x 2 gantry
• Chip Accuracy up to 28 um Cpk ≥ 1.0 (03015 Chip)
• QFP Accuracy up to 25 um Cpk ≥ 1.0 (IC)
• High flexibility with modular conveyor system
• Dual-lane PCB transfer system for high productivity
• Cutting-edge modular mounters

Standard features

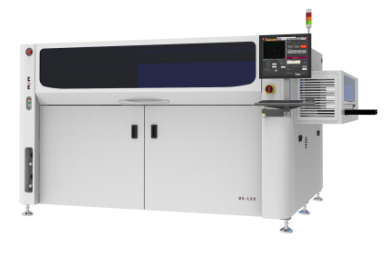

• E2 - Economic, smart printer for PCBs up to 550mm x 510mm
• E7 - Flexible printer for PCBs up to 700mm x 610mm
• H1 - High speed back-to-back printer with integrated shuttle on conveyor
• H2 - High speed printer for PCBs up to 550mm x 510mm
• E8 - Large printer for PCBs up to 850mm
• LX1 - Large printer for PCBs up to 1000mm with X direction printing and cleaning
• LX3 - Large printer for PCBs up to 1300m with X direction printing and cleaning
• LX5 - Super large printer for PCBs up to 1500mm
• FA1 - Stencil Auto Changeover Printer

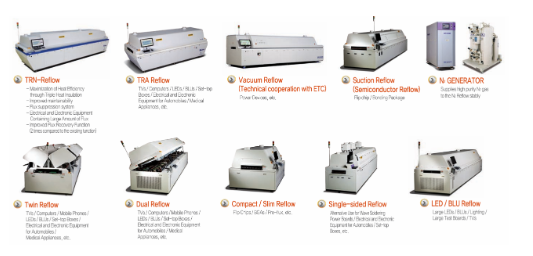

Standard features

• Energy-saving system through uniform ppm control of entire zones
• Highly-accurate O2 control system
• N2 flow control system
• Real-time temperature profile system
• Dual conveyor option for increased productivity
