Solder Paste Printer

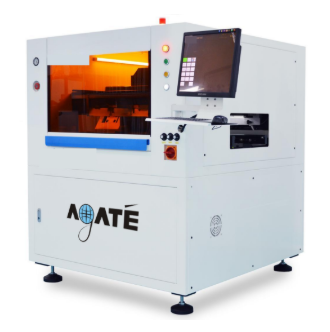

- Agate Automatic Solder Paste Printer: AA-SP-X5
Standard features
- Visual – Up, down double vision, high-performance CCD and image processing system
- Repetitive Printing Accuracy – 0.01mm
- Printing Accuracy – 0.025mm
- Printing Cycle - < 8 s/pc (Excluding printing and cleaning time)
- Steel Mesh Size – (370x370mm)-(737x737mm)
- PCB Size – Min 50x50mm Max 520x340mm
- PCB Thickness – 0.4-6mm
- PCB Weight < 3kg
SMT Pick and Place Machine

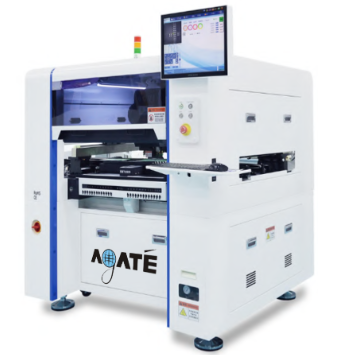

- SMT Pick and Place Machine: AA-PP-F864
Standard features
- Average Mounting Speed: 10000-20000 CPH [Average 15000 CPH]
- Independent Z-axis for each head for simultaneous picking + high speed flying camera
- TBI high-precision grinding ball-screw + TBI high-load linear guideway + Japanese Servo Motor
- Bulk component automatic mounting identification
- Components: 0201, 0402, 0603, 0805, 1206, LED Lamp Beads, Diodes, Transistors, SOT, within 45mm x 45mm, pin pitch>0.
- 4mm, QFP, BGA, etc.
- Mounting Heads: 8
- Feeders: 64 (Electric, pneumatic)
- Accuracy: 0.01mm
- XY Movement Range: 710x620mm
- Maximum PCB Size: 600x380mm
- Component Height: 0-13mm auto adjust without copper sleeve change
- Programming: Point-to-point, visual programming, PCB File Co-ordinates inputting.
- Supports offline programming to improve programming efficiency

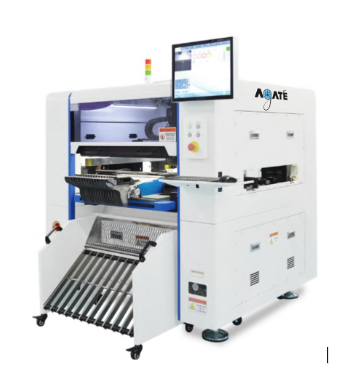

Agate Economical Pick and Place Machine - AA-PP-F8GS (Flying Camera)
Standard features
- Average Mounting Speed: 22000-30000 CPH [Average 23000 CPH]
- Independent Z-axis for each head for simultaneous picking + high speed flying camera
- HIWIN high-precision grinding ball-screw + HIWIN high-load linear guideway + Japanese Servo Motor
- Bulk component automatic mounting identification
- Components: 0201, 0402, 0603, 0805, 1206, LED Lamp Beads, Diodes, Transistors, SOT, within 45mm x 45mm, pin pitch>0.4mm, QFP, BGA, etc.
- Mounting Heads: 8
- Accuracy: 0.01mm
- XY Movement Range: 710x620mm
- Maximum Z Axis Range: 38m
- Nozzle Buffering Range: 5mm
- Maximum PCB Size: 600x380mm
- Component Height: 0-13mm auto adjust without copper sleeve change
- Programming: Point-to-point, visual programming, PCB File Co-ordinates inputting. Supports offline programming to improve programming efficiency
Reflow Oven

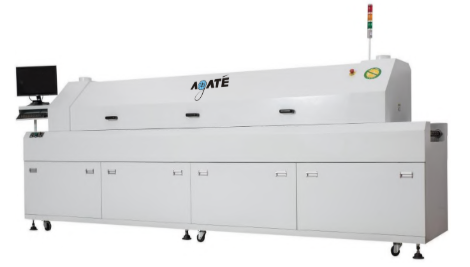

- 8 Zone Reflow Oven - AA-RF-835L
Standard features
- Heating Zones: Upper 8/Lower 8
- Cooling Zone: 1 Zones
- Heating Method: Full hot air
- Cooling Method: Forced Air Cooling
- Max PCB Width: 350mm
- Transmission Speed: 0-2000 mm/min
- Transmission Type: Mesh + Chain Guiderail
- Starting Power: 32kW
- Working Power: Approx 5kW
- Warm-Up Time: About 15~20 minutes
- Temperature Range: Up to 400C
- Dimensions: 4600x1000x1420mm

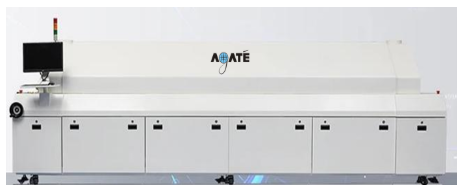

- 10 Zone Reflow Oven - AA-RF-8845L
Standard features
- Heating Zones: Upper 10/Lower 10
- Cooling Zone: 2 Zones
- Heating Method: Full hot air
- Cooling Method: Forced Air Cooling
- Max PCB Width: 450mm
- Transmission Speed: 0-2000 mm/min
- Transmission Type: Mesh + Chain Guiderail
- Starting Power: 45kW
- Working Power: Approx 10kW
- Warm-Up Time: About 10 minutes
- Temperature Range: Up to 400C
- Dimensions: 5000x1200x1520mm
