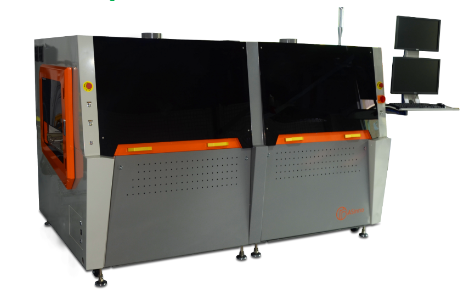

Manufactured by Sasinno, Germany-Japan

Standard features

• XY servo table for fluxing
• Top convection preheating zone, bottom IR preheating zone
• Solder section standard equipped with IE preheating zone at top
• Live camera for solder pot process
• 80-508mm conveyor width
• Drop jet fluxer made in Germany
• 2 standard solder stations. 15kg (mechanical pump) 11kg (electro-magnetic pump) solder pot capacity
• 1.5m3/H N2 consumption per nozzle.
• PID based solder temperature control
