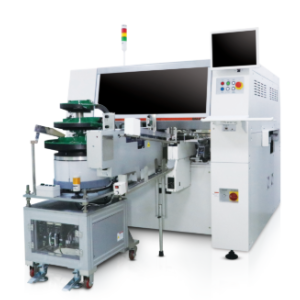

60 slot front-feeder

Standard features

• Laser & Side Light Vision System
• Auto Clinching
• ZHMD (Z-Height Measurement Device)
• Side push technique with a nozzle to press pre-inserted components
• Component collision avoidance
• Component Removal
• Multiple feeder options: Radial, axial, bowl, J stick, etc.
• Conveyor with auto width adjustment

LASER Light for accurate recognition of lead pin using 4-directional lighting

Back Light option to recognize irregularly reflecting and semi-transparent components accurately

Standard features

• Spindle/Gantry - 4 precision spindles/ 1 gantry
• Vision Type - 4 small vision + 1 wide vision
• Accuracy SMD - ±50µm @ Cpk≥ 1.0 (Chip) / ±30µm @ Cpk≥ 1.0 (IC)
• PCB Size - 460L x 400W mm STD
• PCB Weight - 2kg max
