Brand Agate - MQS

Standard Features

• Made in India
• 130kV X-Ray Tube
• Reel Diameters – 7” to 15”
• Reel loading – 4 at a time for 7”
• Maximum Component Height – 100mm
• Minimum Component Size – 01005
• Accuracy > 99.9%
• AERB Type Approved System

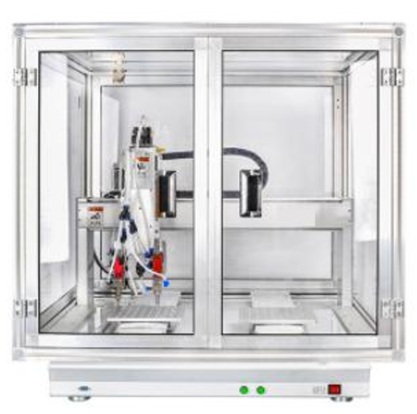

Brand: Agate

Standard features

• Speed(max)= 500mm/s(X/Y); 300mm/s (Z)
• Range options upto 400 x 400mm
• Single/dual table and single/dual head options
• Storage of ~100 program
• Programming: Handheld editor
• Repeatability/Position Accuracy: 0.05mm/0.05mm
• Z maximum load: 3kg
• Drive Mode: Stepper Motor + synchronous belt + linear slide

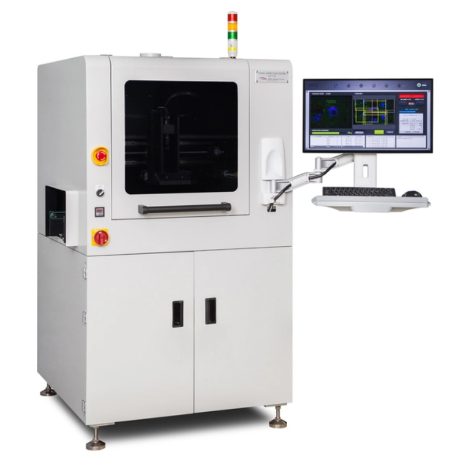

Brand: Impec

Standard features

• Valves: Spray, needle, film, jet, dispensing
• 1000 mm/sec for each axis
• Movement: Line, arc, circle, spline

Brand Agate

Standard features

• Rotation: 800 RPM rotation – 400 RPM self-rotation
• Mixing Time: Adjustable 1-99 min
• Loading: 500g x 2
• Operation: Analog touch buttons
• Low operation noise < 20dB
• Dimensions: L400 x W400 x H420 mm
• Net Weight: ~35kg

Brand Agate

Standard features

• Effective cutting size: 330*380mm
• Cutting Type: Straight line, point, arc, circle
• Cutting Accuracy: 0.08mm
• Repeatability: 0.015mm
• Cutting Speed: 5-100 mm/s

Brand Agate

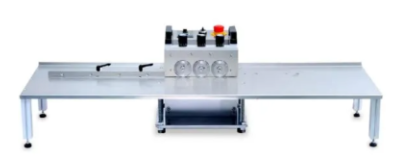

Standard features

• Brand Agate
• Slitting Speed: 80, 120, 200, 400 mm/s
• Tool Material: SKD61 high speed steel
• Slitting board thickness: 0.2-5mm
• Machine weight: 1200mm 39kg

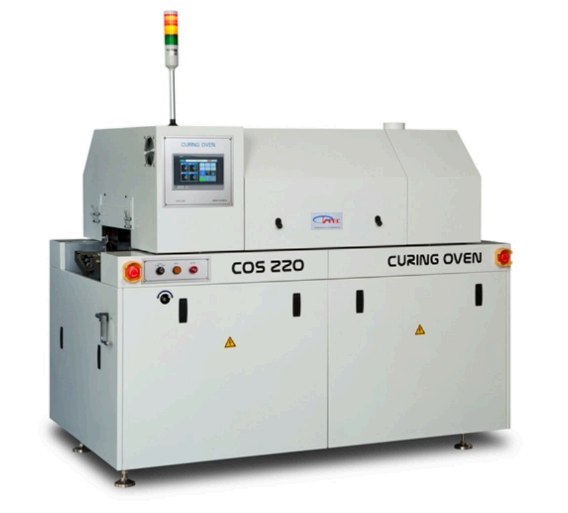

Brand Agate

Standard features

• Compact, in-line
• Stable temperature profile using ceramic - coating heating panels
• Roller chain for stable delivery of products
• Chain conveyor : Speed 0.1~1.5 m/min or 0.4~3.0 m/min

Brand Agate

Standard features

• Completely pneumatic operation with no power
• Cleaning, drying process
• Three-stage, five-layer filtration upto 0.45 um
• Single 40L tank
• Compatible with volatile and non-volatile solvents

Brand Agate

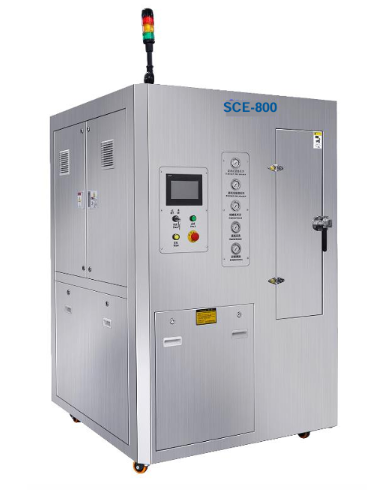

Standard features

• Separate tanks for DI water and solvent
• 4-spray rods
• Ingersoll-Rand Air pump
• 60L x 2 tanks
• 1um filter
• Complete SUS304 internals to protect against liquid pressure on pipe and liquid leakage
• Cleaning, rinsing, drying process
• Compatible with all non-volatile solvent
• Electric operation with drying to avoid saponifier stains on stencil

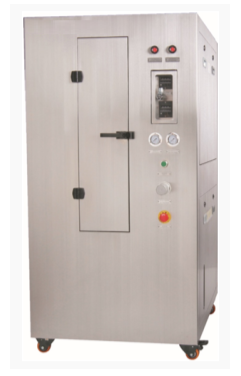

Brand Agate

Standard features

• Automatic cleaning mode- cleaning, rinsing, drying
• Patented Nozzle Design: Complete blind area cleaning
• 3 layers 610 * 600mm area cleaning
• Visualisation of adjustable nozzle pressure adjustable
• Comprehensive cleaning system: Compatible with DI water or chemical cleaning, for
• Overall stainless steel body, resistant to acid, alkaline and other cleaning solutions

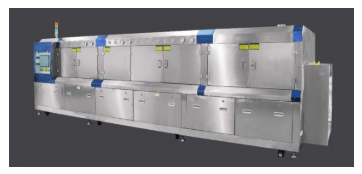

Brand Agate

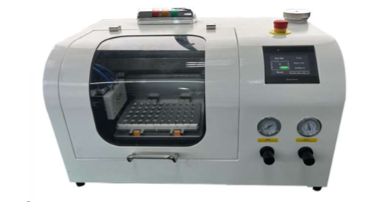

Standard features

• Automatic Cleaning and drying
• Window for process visualization
• Adjustable nozzle pressure to avoid splashing
• 50pcs cleaning at a time
• SUS304
• Replaceable modular controller

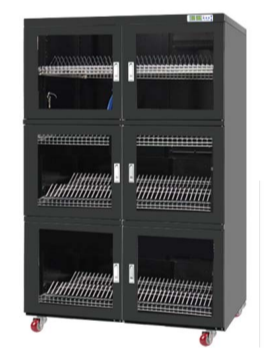

Brand Agate

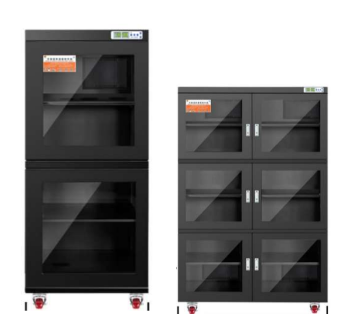

Standard features

• RH options from 1-5% to 60% RH
• Industry-leading competitive pricing Maintain accurate humidity with high-quality desiccators fitted in cabinet
• Volumes: 240L to 1428L
• Cold-rolled steel with toughened glass
• Optional SMT reel slots
• Tolerance: 3% RH

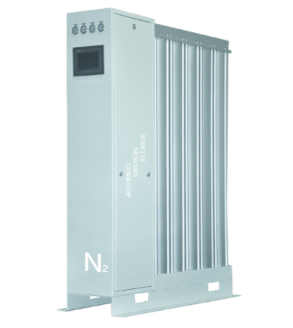

Standard features

• Customisable volume – 40, 80, 120 M³/h etc.
• Residual Oxygen Content: ≤ 0.01 vol.% O2 residual
• Upto 99.999% Purity

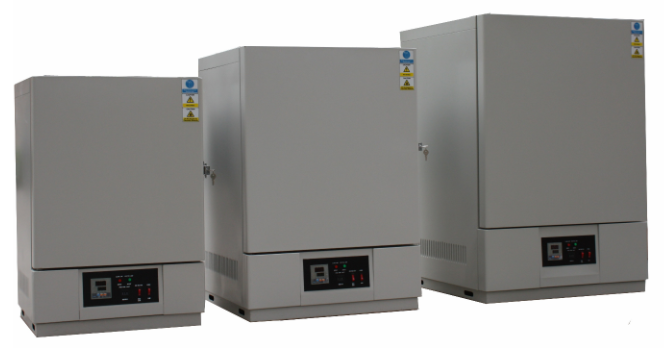

Brand Agate

Standard features

• Forced Air Circulation
• Temperature Range: 10-300C
• Heat—up Time: Approximately 70 minutes
• Iron-chrome wire heater
• Centrifugal blower circulating fan
• Volumes: 72L, 137.5L, 234L

• Carrier Tape Automatic Width (mm):
• 8 Minimum length (mm): 140

Brand Agate

Standard features

• Dedicated 8mm carrier tape splicing (01005 capable)
• Carrier tape thickness 0.25–1.4mm (paper) and 0.25-2.5mm (embossed) applicable
• Battery can support 12-16 hours of continuous operation
• First Pass Yield at 98% or above
• Capable for MES integration, connectivity via Bluetooth and Wi-Fi
• Validation function available in both stand-alone and online mode
• Empty-pocket detection using vision inspection

Brand Agate

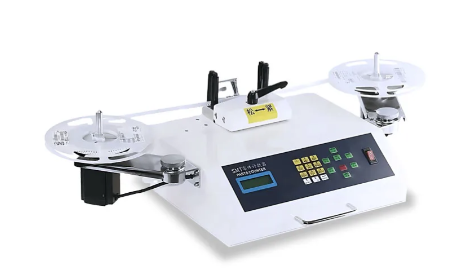

Standard features

• Brand Agate
• Efficient and error-free counting through photoelectric sensor
• Can be fitted with printer and scanner to print Barcode and Measured Quantity
• Can be fitted with 2mm to 56mm width reels
• Leak checking function: Identify if a component is missing in SMD component reel
• Speed: 5000-6500 components counter per minute
• Counting quantity: -99,999 t0 +99,999
